The MX-EX is made for the professional pedalboard builder and is also suited for the DIY hobby builder.
The MX-EX is 100% compatible and uses the same parts as other MX devices.

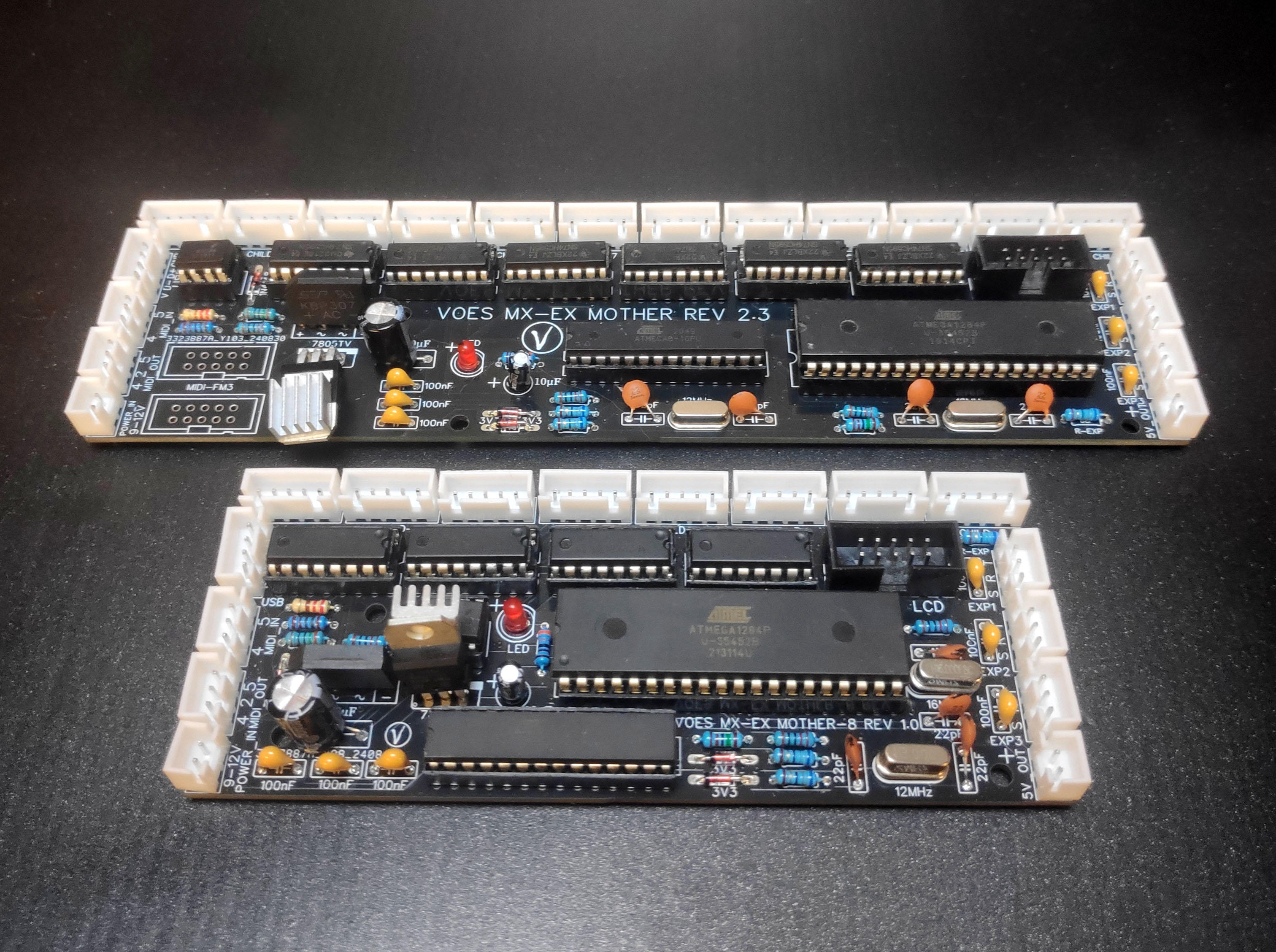

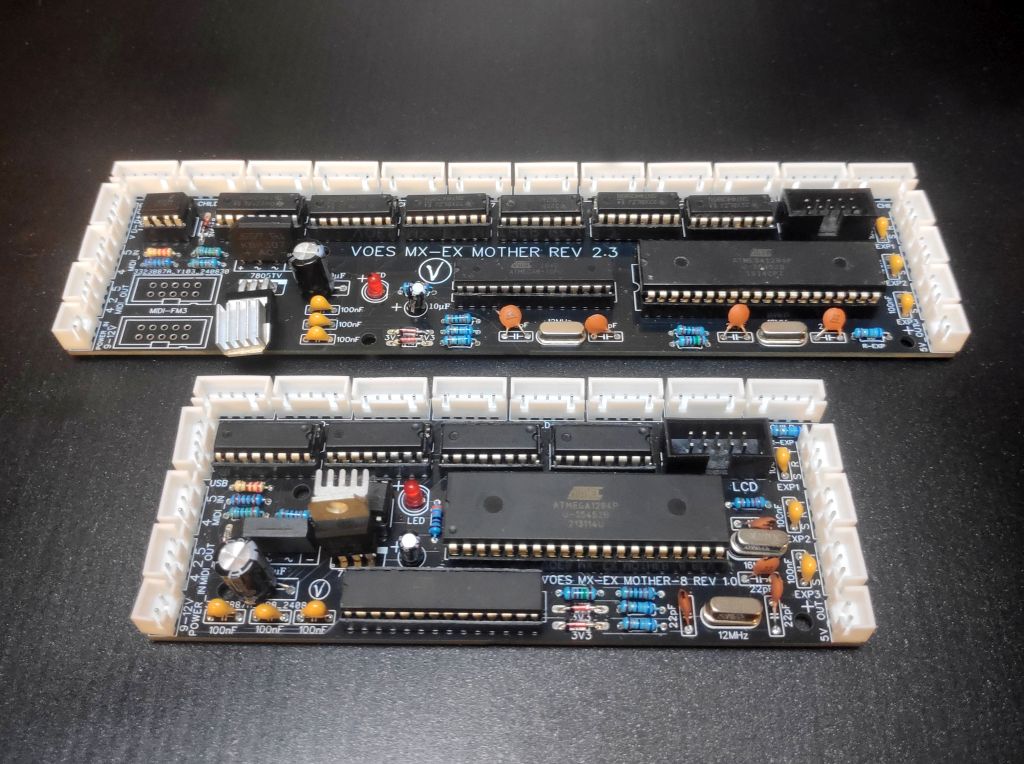

The MX-EX Motherboard can be extended with 2, 4, 6, 8, 10 or 12 Buttons + LEDs.
All MX Child boards have preinstalled Buttons + LEDs.

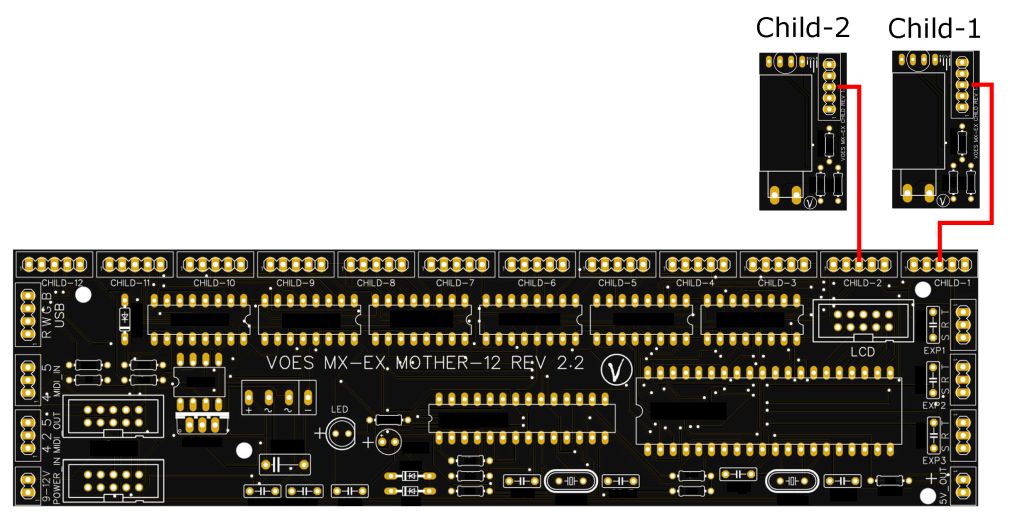

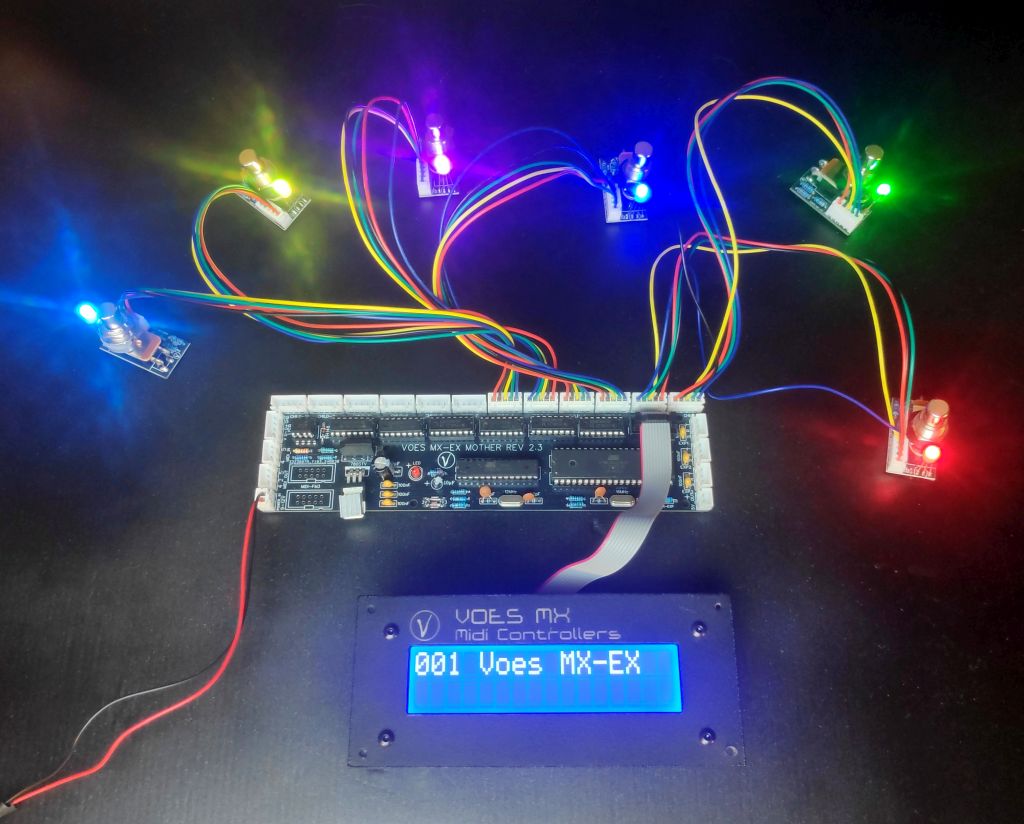

MX Child boards and MX Big Display are easy connected with a flatcable (included).
PCB Boards are compact and take as less space as possible.
LEDs can be delivered soldered on top or aside depending
if you want Buttons & LEDs above each other or aside each other.

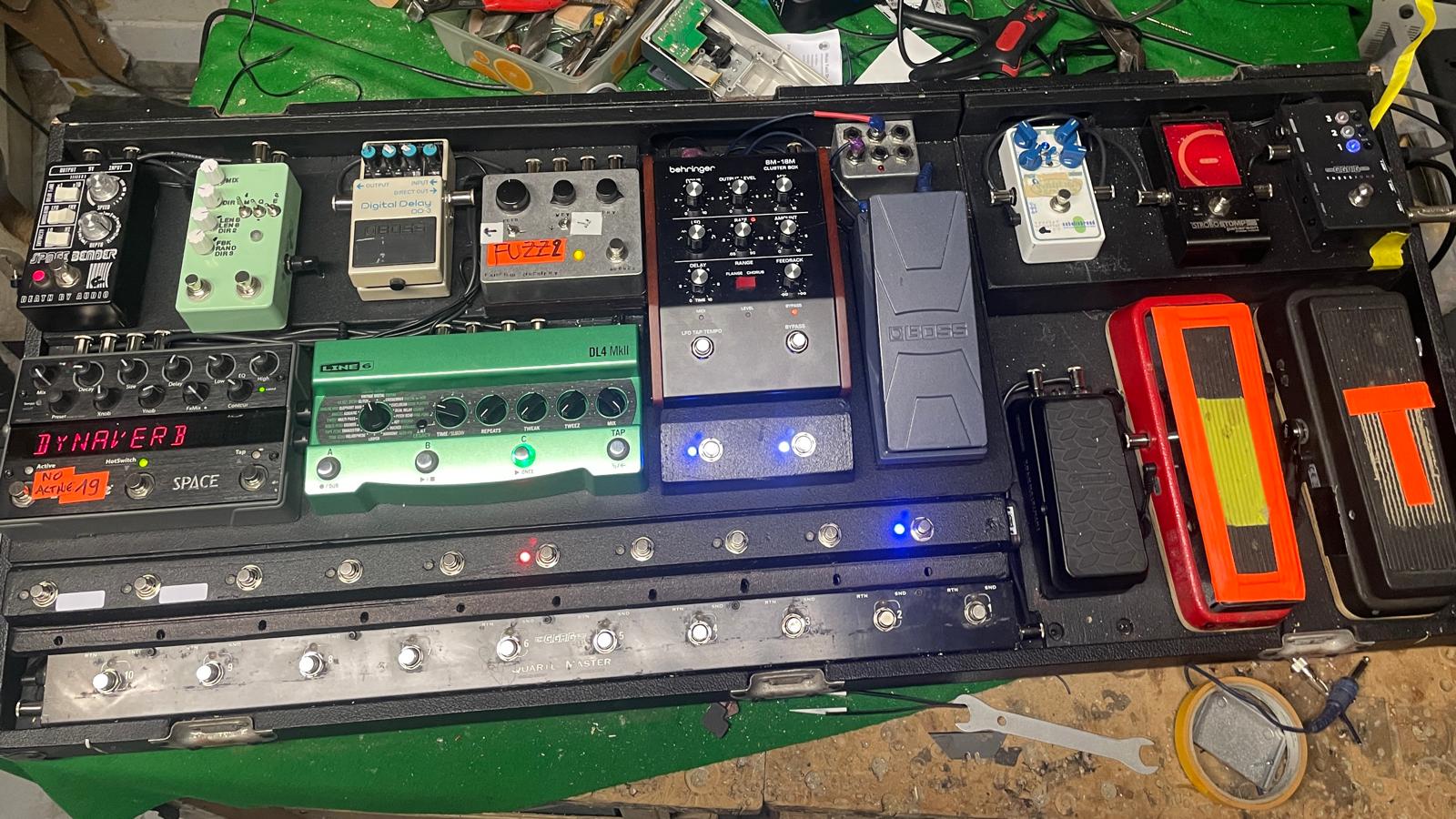

In partnership with JBAG products, pedalboards with preinstalled MX-EX can be ordered.

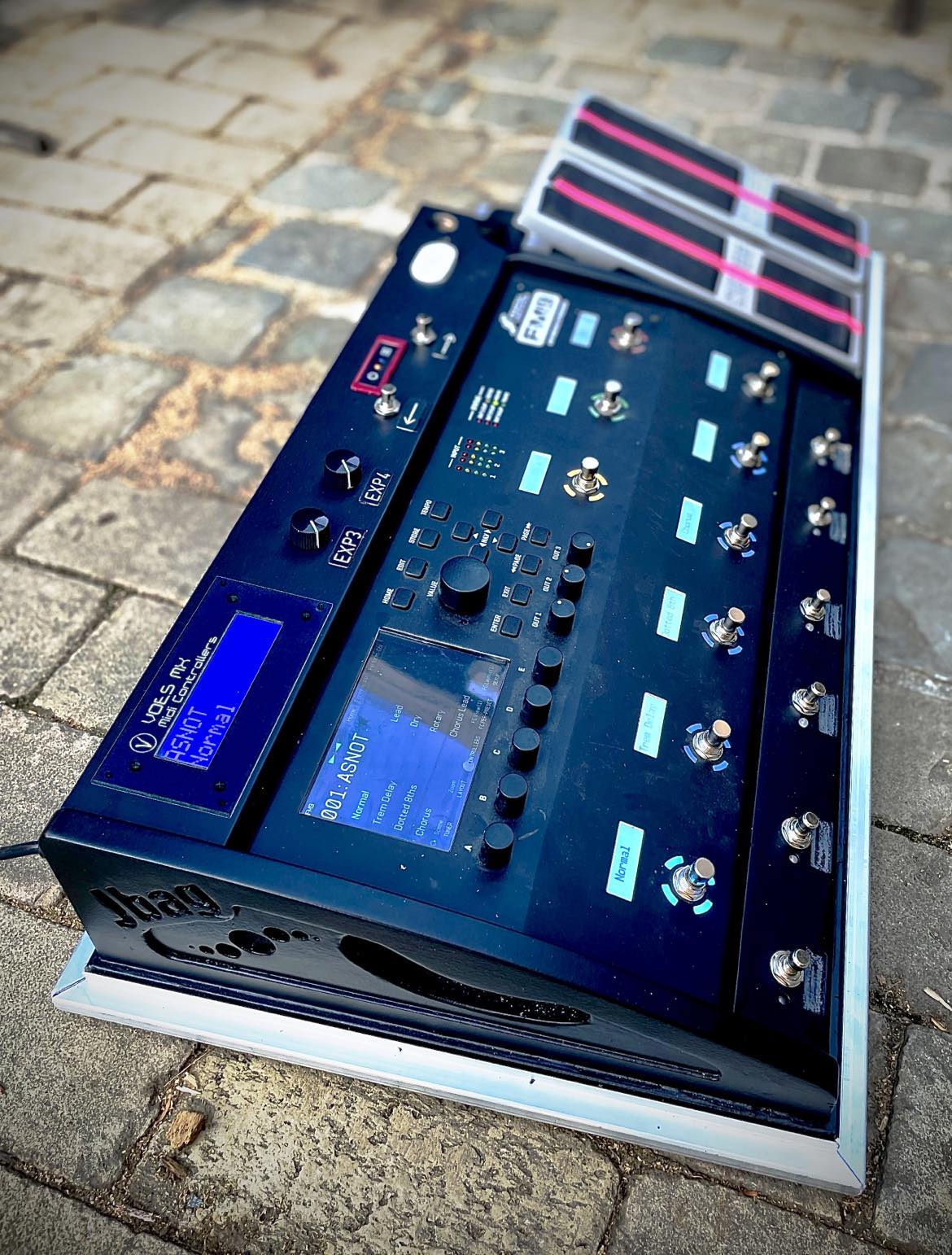

Custom pedalboard for the Fractal FM9™.
MX-EX with 10 Buttons + LEDs.
or 8 Buttons + LEDs and Bluetooth pageturner.
Place for 2 Expression Pedals.
Custom pedalboard for the Fractal FM3™.
Use the MX-Editor to program the MX-EX. Choose the MX model that’s close to your setup.
If you doubt, start with the MX-12 3x4 model.
In just 3 steps you get started in no time.
