VF-Cable / MF-Cable

VF-Cable

VF-Cable & FM3/FM9

Use ONE cable to connect MX and Fractal FM3/FM9™.

No need for an external Power adapter.

With the VF-Cable you use the power directly from the FM3/FM9™.

Works with MX-12 (3x4), MX-12 (2x6) and MX-18.

On the MX side:

  • Network connector to V-Link.

On the FM3/FM9™ side:

  • XLR connector to FASLINK™.
  • Midi In connector to Midi In.
  • Midi Out connector to Midi Out.

VF-Cable & Axe-Fx III

Use the VF-Cable with the Fractal Axe-Fx III™ and the Neutrik RJ45 NE8FDP™ rack panel feedthrough.

No need for an external Power adapter.

With the VF-Cable you use the power directly from the Axe-Fx III™.

Works with MX-12 (3x4), MX-12 (2x6) and MX-18.

On the MX side:

Connect MX to Neutrik RJ45 NE8FDP™ front using a ethercon or a regular network cable.

VF-Cable:

Connect VF-Cable network connector to the Neutrik RJ45 NE8FDP&™ back.

On the Axe-Fx III™ SIDE:

  • XLR connector to FASLINK™.
  • Midi In connector to Midi In.
  • Midi Out connector to Midi Out.

MF-Cable & FM3/FM9

Use ONE cable to connect MX and Fractal FM3/FM9™.

No need for an external Power adapter.

With the MF-Cable you use the power directly from the FM3/FM9™.

Works with every MX Device.

On the MX side:

  • 7-Pin Midi connector to MX Midi Out.

On the FM3/FM9™ side:

  • XLR connector to FASLINK™.
  • Midi In connector to Midi In.
  • Midi Out connector to Midi Out.

Syncing data between FM3/FM9™ and MX.

With both Midi In and Midi Out connected to the MX, Midi data can be synced between Fractal and MX.

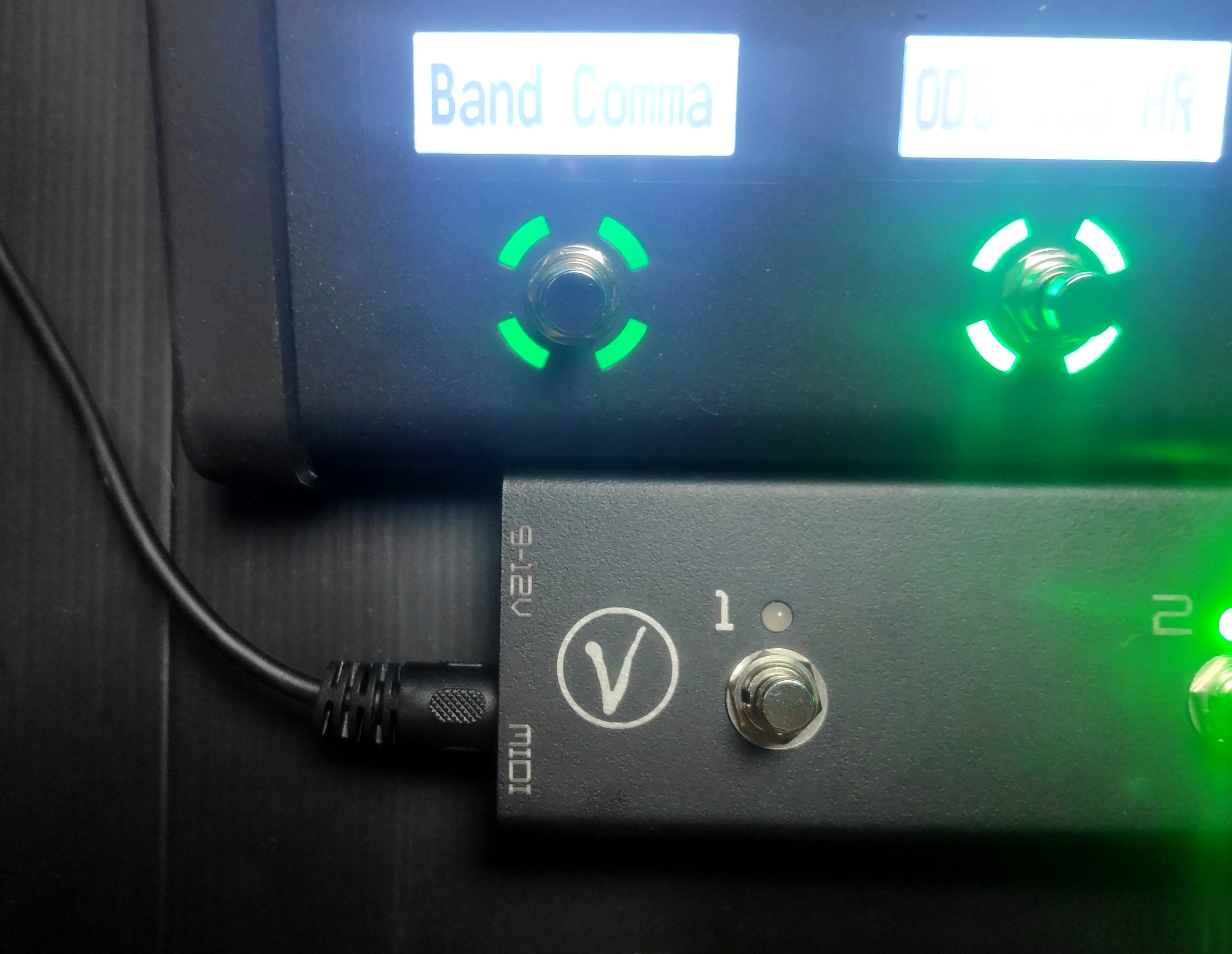

MF-Cable
