Models

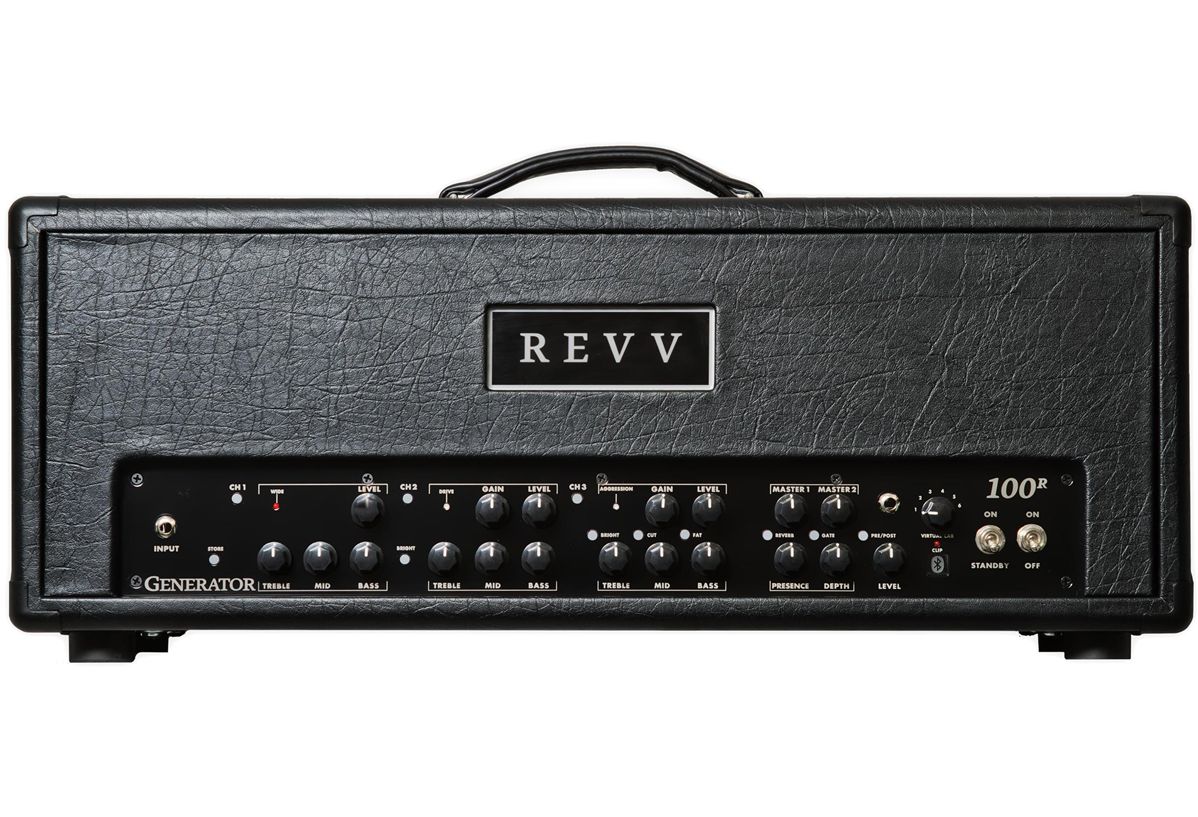

The Gererator models G50, 100R, 100P and 120 are described. Depending on the model, not all functions are available.Continuous Controller (CC)
The following commands & their CC numbers need only be sent an ON command (0-63) as they are used to switch between channels & aggression levels which cannot be turned off, only changed to a different channel or level, on & off commands sent will produce the same result. The following 2 commands will switch to the channel & then toggle through the aggression levels with each use of the command using the footswitch to switch to the channel & toggle through the aggression levels. This command will also respond to an on & off command with the same result:
CC# Function
13 Ch. 1 14 Ch. 1 wide 15 Ch. 2 low Drive 16 Ch. 2 med Drive 17 Ch. 2 high Drive 18 Ch. 3 low aggression 19 Ch. 3 med aggression 20 Ch. 3 high aggression 21 Ch. 4 low aggression 22 Ch. 4 med aggression 23 Ch. 4 high aggression The following 2 commands will switch to the channel & then toggle through the aggression levels with each use of the command using the footswitch to switch to the channel & toggle through the aggression levels. This command will also respond to an on & off command with the same result:CC# Function
18 Ch. 3+ aggression toggle 19 Ch. 4+ aggression toggle The following commands control functions that are turned on & off. These functions require an off (0-63) & on (64-127) command (byte) to be sent with the CC number to either turn them on or off. If you are trying to use them & are not getting them to respond, chances are you are sending the wrong command byte ( 0-63 is OFF & 64-127 is ON). (Consult the Peripheral’s instruction manual) Function CC Number Hex value)CC# Function
26 Noise Gate 27 Masters 28 Fat 29 Bright 30 Mute 31 Reverb 33 Pre-Post 34 Cut 35 FX Loop 36 Two Notes Power Amp 37 Two Notes Reverb 38 Two Notes Noise Gate 39 Two Notes Twin Tracker 40 Two Notes EQ 41 Two Notes EQ R 42 Two Notes Mute
