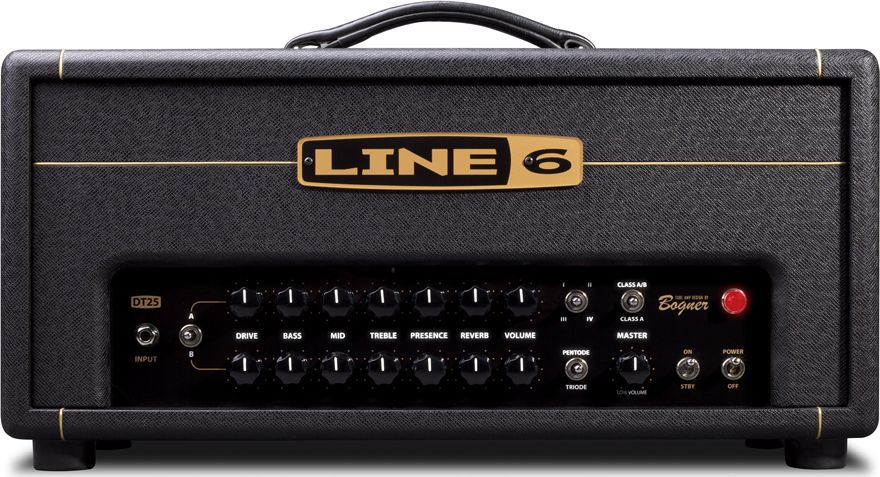

Line6 - DT25, DT50
MIDI Channel
Midi channel is set fixed to 1.CC# List
CC# Value Function
19 0-63 = Channel A Channel A/B Select 64-127 = Channel B 66 0-127 Channel A/B Toggle 82 0 = None XLR Direct Out Mic Emulation 1 = 57 Dynamic 2 = 57 Dynamic, Off Axi 3 = 409 Dynamic 4 = 421 Dynamic 5 = 4038 Ribbon 6 = 121 Ribbon 7 = 67 Condenser 8 = 87 Condenser 85 0-63 = Normal Mode Low Volume Mode: Bypass/Enable 64-127 = Low Vol. Mode 122 0 = Channel A Voicing I Voicing 1 = Channel A Voicing II 2 = Channel A Voicing III 3 = Channel A Voicing IV 4 = Channel B Voicing I 5 = Channel B Voicing II 6 = Channel B Voicing III 7 = Channel B Voicing IV
Special Channel A/B CC# List
Ch A Ch B Value Function
11 91 0 = None HD Amp Select. Selects the HD Amp type for the current Voicing position 1 = Blackface Double Normal 2 = Blackface Double Vib 3 = Hiway 100 4 = Super O 5 = Gibtone 185 6 =Tweed B-Man Normal 7 = Tweed B-Man Bright 8 = Blackface ‘Lux Normal 9 = Blackface ‘Lux Vib 10 = Divide 9/15 11 = Phd Motorway 12 = Class A-15 13 = Class A-30 14 = Brit J-45 Normal 15 = Brit J-45 Bright 16 = Brit Plexi 100 Normal 17 = Brit Plexi 100 Bright 18 = Brit P-75 Normal 19 = Brit P-75 Bright 20 = Brit J-800 21 = Bomber Uber 22 = Treadplate 23 = Angel F-Ball 24 = Line 6 Elektrik 25 = Flip Top 26 = Solo 100 Clean 27 = Solo 100 Crunch 28 = Solo 100 Overdrive 29 = Line 6 Doom 30 = Line 6 Epic 12 89 0 = None HD Amp with Defaults. Selects the HD Amp + the default Cab 1 = Blackface Double Normal 2 = Blackface Double Vib 3 = Hiway 100 4 = Super O 5 = Gibtone 185 6 =Tweed B-Man Normal 7 = Tweed B-Man Bright 8 = Blackface ‘Lux Normal 9 = Blackface ‘Lux Vib 10 = Divide 9/15 11 = Phd Motorway 12 = Class A-15 13 = Class A-30 14 = Brit J-45 Normal 15 = Brit J-45 Bright 16 = Brit Plexi 100 Normal 17 = Brit Plexi 100 Bright 18 = Brit P-75 Normal 19 = Brit P-75 Bright 20 = Brit J-800 21 = Bomber Uber 22 = Treadplate 23 = Angel F-Ball 24 = Line 6 Elektrik 25 = Flip Top 26 = Solo 100 Clean 27 = Solo 100 Crunch 28 = Solo 100 Overdrive 29 = Line 6 Doom 30 = Line 6 Epic 71 110 0 = None Cab Select 1 = 2x12 Blackface Double 2 = 4x12 Hiway 3 = 1x(6x9) Super O 4 = 1x12 Gibtone F-Coil 5 = 4x10 Tweed B-Man 6 = 1x12 Blackface ‘Lux 7 = 1x12 Brit 12-H 8 = 2x12 PhD Ported 9 = 1x12 Blue Bell 10 = 2x12 Silver Bell 11 = 4x12 Greenback 25 12 = 4x12 Blackback 30 13 = 4x12 Brit T-75 14 = 4x12 Uber 15 = 4x12 Tread V-30 16 = 4x12 XXL V-30 17 = 1x15 Flip Top (Bass) 13 92 0-127 Drive Knob 14 93 0-127 Bass Knob 15 94 0-127 Mid Knob 16 95 0-127 Treble Knob 17 103 0-127 Channel Volume Knob 21 102 0-127 Presence Knob 77 114 0 = Tight NFL Topology/Negative Feedback Loop Type 1 = Loose NFL 2 = Zero NFL 3 = Resonant NFL 73 115 0-63 = Class A Power Amp Operating Class 64-127 = Class A/B 75 116 0-63 = Triode Power Amp Tube Configuration: Triode/Pentode 64-127 = Pentode 74 117 0-63 = Normal 12AX7 Boost Mode: Bypass/Enable 64-127 = Boost Enabled 78 86 0-63 = Low B+ Phase Inverter B+ Voltage: Low/High (DT50 amplifiers only) 64-127 = High B+ 79 87 0-63 = Capacitor X Feedback Capacitor Type: Cap X/Y (DT50 amplifiers only) 64-127 = Capacitor Y 36 105 0-63 = Bypassed Reverb Bypass/Enable 64-127 = Enabled 37 107 0 = None Reverb Type 1 = Spring 2 = ‘63 Spring 3 = Plate 4 = Room 5 = Chamber 6 = Hall 7 = Cave 8 = Ducking 9 = Octo 10 = Tile 11 = Echo 12 = Particle Verb 52 56 0-127 Reverb Decay 53 57 0-127 Reverb Pre Delay 54 58 0-127 Reverb Tone 55 59 0-127 Reverb Mix
