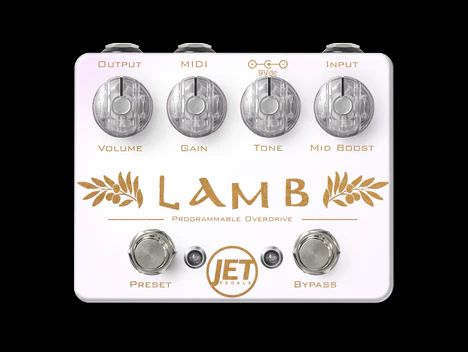

JET Pedals - Lamb Overdrive

Changing the MIDI Channel

From the factory the Lamb is set to receive Midi messages on
Midi channel 1, however this can be changed upon powering up the
pedal.

After applying power to the Lamb, hold down the Preset switch
while the pedal is in startup mode (Volume & Mid Boost knobs
are white and the Bypass and Preset LED's are flashing). While
continuing to hold down on the Preset switch, the Bypass LED
will flash the number of times equivalent to the Midi channel
(set to 1 from the factory) and then will have a 2 second pause
before flashing again. Simply press the Bypass switch to increment
the Midi channel by 1, press as many times necessary to change to
the correct Midi number. The numbers available on the Lamb are
channels 1 thru 16, once you've reached number 16 the next press
will start over again at number 1. Once you have the right number
selected, just release the Preset switch to save this setting
into permanent memory.
JET Pedals - Lamb Overdrive


Saving Presets Via MIDI

You have two options for creating presets. The first option is to use a "smart" midi controller that can send multiple
simultaneous midi messages. Just send individual CC messages to turn the Bypass switch on, select the algorithm, and
set the values for each knob.

The second option is to use our revolutionary CC Snapshot feature. While in Live Mode, select your desired algorithm
and then set all of the knobs to their desired positions. From there just send midi CC #28 with any Value from 3 thru
124. The pedal will then take a snapshot of its algorithm and knob positions, after that the knobs will flash green
letting you know the preset has been saved into permanent memory. To recall this preset, just send a PC message with
the same number used for the Value when sending CC #28.

Example: send CC #28 Value 10 to save a preset in the 10th slot.
Send PC #10 to recall the new preset.

The Lamb can save 100 onboard presets (0 thru 99).


Program Change Messages

PC #0 - Recalls the first preset (UV)
PC #1 - Recalls the second preset (Red)
PC #2 - Recalls the third preset (Green)
PC #3 - 124 Recalls the preset created by CC Snapshot (Blue)

In this mode all of the LED's will be blue and the knobs will be active in case you need to make changes on the fly.
Since every preset 3-124 will be the same color, it may be hard to remember what's been saved to each preset location.
No worries, if you move the knobs away from their original position, the color of the LED's will change and when moved
back to the saved preset location the LED's light up blue again. For the Gain and Tone knobs (that don't have an
illuminated knob) the Preset and Bypass LED's will flash when moved away from the saved position and return solid when
you navigate back to the saved preset location.


Control Change Messages

Receiving CC messages will control the individual controls, knobs, and switches of the Lamb

CC #19 with any value of 1 thru 8 controls the Volume knob. 1 is the equivalent of having the knob turned completely
       counter-clockwise and 8 is like having the knob turned completely clockwise.
CC #20 with any value of 1 thru 8 controls the Gain knob. 1 is the equivalent of having the knob turned completely
       counter-clockwise and 8 is like having the knob turned completely clockwise.
CC #21 with any value of 1 thru 8 controls the Tone knob
CC #22 with any value of 1 thru 8 controls the Mid Boost 1 knob
CC #23 Any value between 0 & 63 turns the Bypass switch off
       Any value between 64 & 127 turns the Bypass switch on
CC #24 Any value between 0 & 63 turns the Preset switch off
       Any value between 64 & 127 turns the Preset switch on
CC #25 any value between 0 & 127 increments the Preset number
CC #26 any value between 0 & 127 decrements the Preset number
CC #27 Any value between 0 & 42 activates the Cyan circuit
       Any value between 43 & 85 activates the White circuit
       Any value between 86 & 127 activates the Yellow circuit
CC #28 any value between 3 & 124 activates CC Snapshot mode
       This takes a snapshot of your current settings and stores it permanent memory at the appropriate preset location.
       An example would be to send CC #28 Value 3, this stores a preset in the 3rd slot and can be recalled anytime by
       sending PC #3
CC #29 Any value between 0 & 63 turns off the Lead Boost
       Any value between 64 & 127 turns on the Lead Boost
       (you can also exit the Lead Boost with the foot switches as well)
