Boss - 500 Series

The Boss 500 Series contists of:
* DD-500 Digital Delay
* MD-500 Modulation
* RV-500 Reverb

DD-500 CC#
[A] switch 82 [B] switch 83 [TAP/CTL] switch 84 EXP pedal 16 CTL 1 switch 80 CTL 2 Switch 81 [FEEDBACK] knob 17 [TONE] knob 19 [E. LEVEL] knob 18 [MOD DEPTH] knob 20 Delay on, Bypass 21 Looper Phrase loop 22 Record, Overdub 23 Loop playback 24 Stop 25 Clear 26
MD-500 CC#
[RATE/VALUE] knob 17 [DEPTH] knob 18 [E. LEVEL] knob 19 [PARAM 1] knob 20 [PARAM 2] knob 21 CTL 1 switch 80 CTL 2 Switch 81 EXP pedal 16 Effect on, Bypass 27 Effect A on, Bypass 28 Effect B on, Bypass 29
RV-500 CC#
[TIME/VALUE] knob 17 (reverb) 22 (delay) [PRE-DELAY] knob 18 (reverb) 23 (delay) [E. LEVEL] knob 19 (reverb) 24 (delay) [LOW] knob 20 (reverb) 25 (delay) [HIGH] knob 21 (reverb) 26 (delay) CTL 1 switch 80 CTL 2 Switch 81 EXP pedal 16 Effect on, Bypass 27 Effect A on, Bypass 28 Effect B on, Bypass 29
Boss DD-500
Boss MD-500

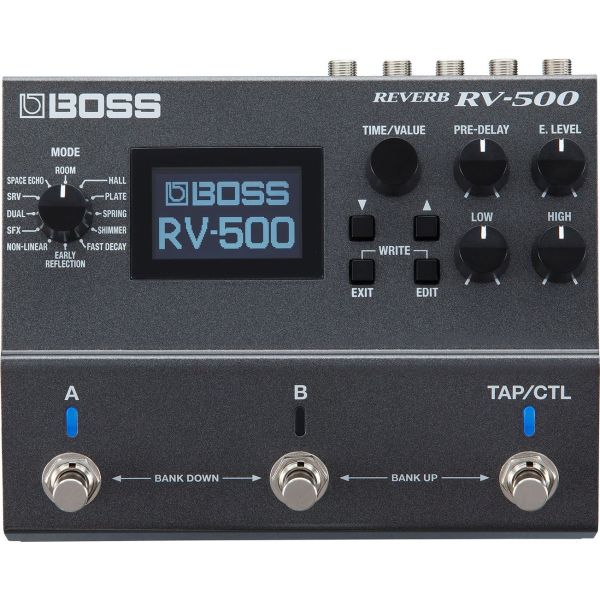

Boss RV-500
