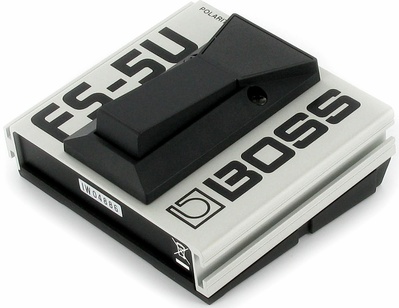

Expert: Using a Boss FS-5U as external Tap-Tempo
DISCRIPTION: we want to connect a Boss FS-5U
to expression 2 to control the tap-tempo of our Axe-Fx.
(this will probably work will any other momentary "unlatch"-type footswitch).
- PREPERATIONS:
- IMPORTANT: use a Y-cable (AKA insert cable). Stereo end into Expression 2 input. Tip-side into FS-5U.
(DO NOT insert a mono-cable in the expression pedal jack - you will cause damage to the unit.) - Find out which MIDI-channel the Axe-Fx is recieving data (channel 1 for me).
- Find out which CC the Axe-Fx uses for tap-tempo (CC 14 for me).
something on the screen | MENU MENU |
Which Function? Global Menu | P1 untill you see Global Menu.
P4 to enter the Global Menu. |
MIDI Rec Chan 001 | P4 untill you see EXP1. |
EXP1:M01 AXE-FX C:B 1:033 2:OFF | Settings for Expression 1. We are not interested now so...
S4 for the next step. |
EXP2:M01 AXE-FX C:B 1:014 2:OFF | This is where you set the midi-channel and CC for EXP2.
S1/P1 for the right MIDI-channel (channel 1 for me). S3 for the next parameter. |
EXP2:M01 CC # C:B 1:014 2:OFF | Now we tell it to transmit CC (control changes).
S1/P1 untill you see C:B (CC). S3 for the next parameter. |
EXP1:M01 CC # ? C:B 1:014 2:OFF | Which CC we want to transmit? (CC14 for me).
S1/P1 untill you get the right CC (P2 P3 to jump +/- 10 steps). S4 to save and go to the next step. |
EXP1: Pedal Type *Continuous | Pedal type of EXP1. We are not interested now so...
S4 to save and go to the next step. |
EXP2: Pedal Type *One-Shot | S1/P1 Change the Pedal type of EXP2 to One-Shot.
S4 to save and go to the next step. |
EXP 1 Pedal cal Press Pdl up/dwn | All lights will go ON. Move you pedal UP/DOWN and see the red light go UP/DOWN.
S4 to save and go to the next step. |
EXP 2 Pedal cal Press Pdl up/dwn | S4 led will be red. Step on the FS-5U and the red led will move to S1.
After that no more changes in led will appear. S4 to save and go to the next step. |
* LCD CONTRAST * **************** | Now we want to leave the MENU.
MENU MENU |
